PRO Z790-P WIFI مذربورد من ام اس اي واي فاي

مذربورد msi PRO Z790-P WIFI أداءً عالياً واتصالاً لا مثيل له، لذلك فهي تعد الخيار المثالي لمحترفي الألعاب، وبنّاة الحواسيب الشخصية، ومبدعي المحتوى، والمهندسين التقنيين.

مواصفاتها:

Chipset:

Intel Z790

CPU:

Support for Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold, and Celeron® Processors

LGA 1700 socket

Memory:

4x DDR5 slots, Maximum Memory Capacity 192GB

Memory Support: 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Supports Intel® XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

Onboard Graphics:

1x HDMI™ (HDMI™ 2.1 with HDR, max resolution of 4K 60Hz*)

1x DisplayPort (DP 1.4, max resolution of 4K 60Hz*)

(*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.)

Expansion Slots:

3x PCI-E x16 slots

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage:

4x M.2 slots

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

6x SATA 6G

RAID support for SATA and M.2 NVMe storage devices

USB:

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

4x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN:

Intel® 2.5Gbps LAN

Wireless LAN & Bluetooth:

Intel® Wi-Fi 6E

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/b/g/n/ac/ax

Supports Bluetooth® 5.3, FIPS, FISMA

(*Wi-Fi 6E 6GHz availability may depend on country regulations and is ready for Windows 11. **Bluetooth 5.3 is ready for Windows 10 build 21H1 and Windows 11.)

Audio:

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Internal I/O:

Various connectors including power connectors, fan headers, LED strip headers, M.2 connectors, SATA connectors, USB headers, and more.

LED Feature:

4x EZ Debug LED

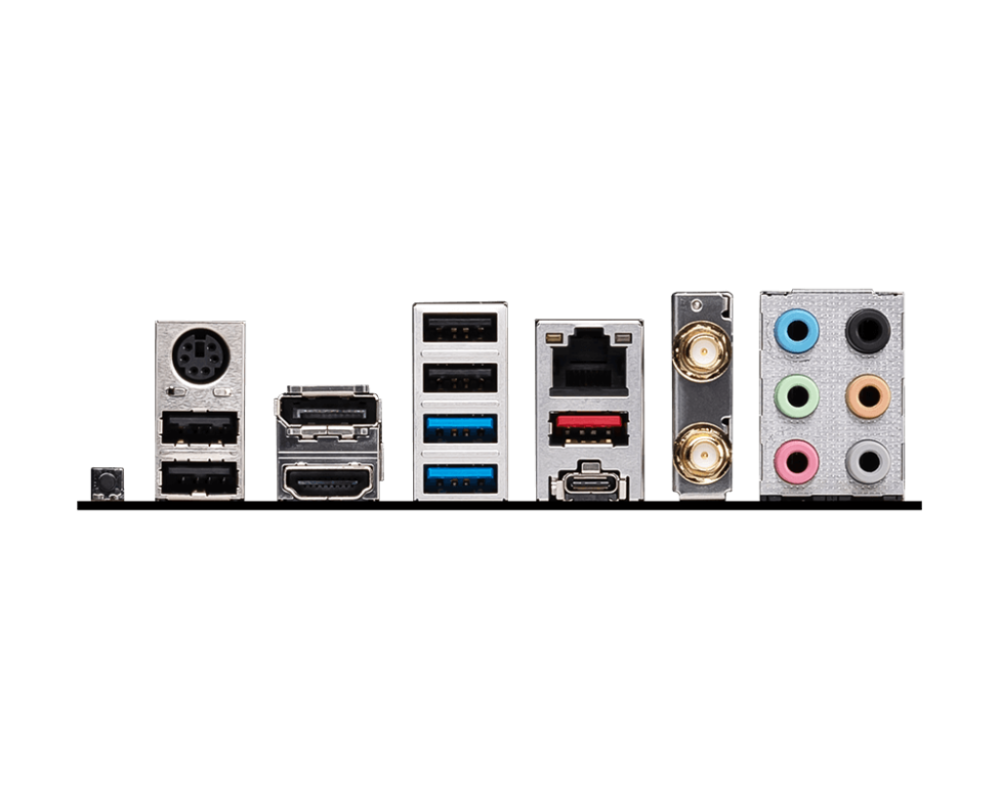

Back Panel Ports:

Keyboard / Mouse

DisplayPort

USB 2.0

2.5G LAN

Wi-Fi / Bluetooth

Audio Connectors

Flash BIOS Button

USB 2.0

HDMI™

USB 3.2 Gen 1 5Gbps (Type-A)

USB 3.2 Gen 2x2 20Gbps (Type-C)

USB 3.2 Gen 2 10Gbps (Type-A)

Operating System:

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info:

ATX form factor, 243.84mm x 304.8mm

تتميز msi PRO Z790-P WIFI بمميزات متقدمة لكسر السرعة وخيارات التخزين المتعددة، بالإضافة إلى Wi-Fi 6E و Bluetooth 5.3 و PCIe 5.0، كما أنها تدعم

أحدث المعالجات من إنتل؛ لتوفير تجربة توصيل سلسة ومتميزة، لذلك فهي تناسب الأشخاص الذين يبحثون عن اتصال لاسلكي موثوق وأداء عالي السرعة.

• ضمان سنتين - TWO YEARS WARRANTY
